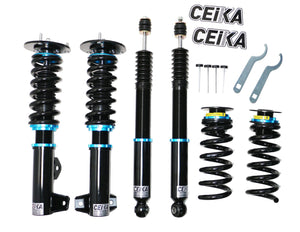

CEIKA Custom Coilovers for Audi Q4 e-tron F4 (24~up)

なぜCEIKAを選ぶのか?

レースで実証されたCEIKA車高調を、快適なストリート、スポーツ走行、プロレースなど用途に合わせて製作・減衰設定し、ダイナモテストを行います。スプリングレート、減衰特性、ストローク、目標車高を車両とドライバーの希望に合わせます。

CEIKAを選ぶ理由

  • 車種別ボルトオン設計と適合保証
  • 製造上の不具合に対する12か月保証
  • オーバーホールおよびアップグレード可能
  • ステアリングレスポンス、トラクション、制動安定性を向上
  • 車種別リニアスプリングによりロールと荷重移動を低減
  • プリロードやストロークと独立した車高調整
  • 耐腐食性材料とダイナモテスト済みダンパー
キット適合

CEIKAフルアジャスタブル車高調は、Audi Q4 e-tron F4 (24~up)へボルトオン装着できる車種別設計です。

Front Coilovers: MacPherson Design with Coil over Shocks

Rear Coilovers: Separated Shocks and Springs

対応ヘルパースプリング:Front available / Rear unavailable

アッパーマウント仕様

- Front: Aluminium Top Plate with Rubber Bushes or Pillowball with Camber Adjustment

- Rear: No Top Plates

スプリングレート

標準スプリングレート:Audi Q4 e-tron F4:

Front Spring Rate: 12 kg/mm

Rear Spring Rate: 15 kg/mm

快適性重視の場合は車両構造に合わせてレートを下げられます。競技用途では車両仕様に基づき最適なスプリングレートと減衰を選定します。

配送予定と送料

CEIKAは米国、カナダ、オーストラリア、日本、欧州など多くの地域へDHL/FedExの無料エクスプレス配送を提供します。対象外地域の追加料金はチェックアウトで表示されます。発送後通常4~6営業日ですが、通関や遠隔地では遅れる場合があります。

保証

製造上の不具合に対するCEIKA 1年保証。ボルトオン適合を保証し、適合しない・正常に機能しない場合は修正版または交換部品を無償提供します。期待する性能になるよう調整や部品交換をサポートします。

Tuned for Perfection: CEIKA Custom Made Coilovers.

Bolt-on guaranteed for Your Audi Q4 e-tron F4 (24~up)

Our race-proven coilovers are custom built and valved to suit your specific needs, whether it be for everyday use or pro racing. Since 2008, every CEIKA order is unique, with fine-tuned spring rates and custom shock valving to match. Our shocks are custom valved, dyno tested, and guaranteed to provide you with the closest ride quality and handling desired with this upgrade. At CEIKA, we are fully committed to giving each and every order the attention and expertise it deserves. Our team of technical experts will provide you with the best support and guidance to make sure you get the most out of your suspension kit.

Our Custom CEIKA Coilovers are used in all types of street and pro race cars all around the world, providing excellent performance and outstanding longevity. They are built to order based on three different shock design types:

  • Type 1M: A modern and versatile option with a single damping knob on each shock that adjusts compression and rebound together for a perfect match. It provides a wide adjustment range and a damping setting that is always optimal with quick "on the fly" adjustment.
  • Type 2M: Comes with external nitrogen reservoirs and separate compression and rebound adjustments for a more precise control of the damping behaviour. These will require more time to fine-tune and cannot be adjusted on the fly unless you have pre-test settings and kept notes of the numbers of clicks for each compression and rebound.
  • Type 3M: The pro-end user option, allowing for a further fine-tuning of the suspension with separate adjustments for rebound, fast compression, and slow compression.

We strongly recommend the Type 1M for daily use or even pro racers who want fast and easy adjustability of the car for any circumstance. With the Type 2M and 3M, you run the risk of setting up the damping adjustment incorrectly, leading to a bad handling experience. The Type 1M will provide a perfectly safe and efficient handling throughout its single adjustment range.

Our Custom CEIKA Coilovers will greatly improve and renew your car's feel, providing a firm yet versatile ride that feels soft when going over bumpy surfaces. Proper fine-tuning of the coilovers, as well as installation, is important, so make sure you have this task carried out by a professional and follow our guidelines or advice.

On top of renewing your car's suspension and steering feel, this upgrade will provide:

  • Bolt-on Installation and satisfaction guaranteed
  • 12 Months Warranty
  • Fully Rebuildable and Upgradable. Excellent longevity and reliability even under extreme use and conditions
  • Increased steering feel, response, and predictability with our high-performance valves and linear custom spring rates (progressive springs also available)
  • Improved traction and braking performance by reducing weight transfers and body-roll
  • Custom-built for the perfect ride feel, with the right amount of stiffness for the best handling
  • Fully adjustable height (around 10 to 12cm range depending on applications), with full threaded shocks allowing independent height adjustment from spring preload/shock travel
  • Custom height (extra lowering or lift) and customised shock travel available
  • High-quality materials, parts, and non-recycled alloys from Japan and Taiwan with ISO9001:2008 quality control

Our shocks are also corrosion-resistant and built to last, so you can enjoy the benefits for years to come. Installation is quick and easy, and we even offer a one-year warranty for your peace of mind. Don't settle for a stock or aftermarket off-the-shelf suspension system that doesn't meet your needs. Upgrade to the CEIKA Coilover Suspension System and experience the difference for yourself.

At CEIKA, we understand that every car and driver is unique, and therefore every suspension setup should be too. That's why we offer our Custom Coilovers for a wide range of applications, from daily driven street cars to high-performance racing machines. Our custom coilovers have been used in all types of street and pro race cars all around the world, in categories such as rally, drift, drag, road racing, time attack, and more. Even for street cars, you can now benefit from coilover adjustability and better handling even if you want a comfortable ride for your daily driver or family car. No matter what type of driving you do, our technical experts will work with you to customise a setup that meets your specific needs and driving style.

We will make sure that you will be pleased and that the coilovers exceed your expectations. Whether you're looking for improved handling and performance, or simply want to refresh your car's chassis, our suspension system is the perfect choice. Order your CEIKA Coilover Suspension System today and experience the ultimate in performance, handling, and adjustability. You can also read our previous customer reviews below to see what they have to say about us! Just like them, you won't regret it!

We strongly advise to make sure that every component in your chassis suspensions, steering components and subframe mounts are in good working conditions as upgrading to stiffer suspensions (especially with pillow ball tops) will make suspension play and noises more noticeable and the stronger forces applied on them will make worn out mounts and bushes wear out quickly. Good condition OEM bushes or new poly bushes upgrade along with the suspensions upgrade will insure a "like brand new" ride quality.

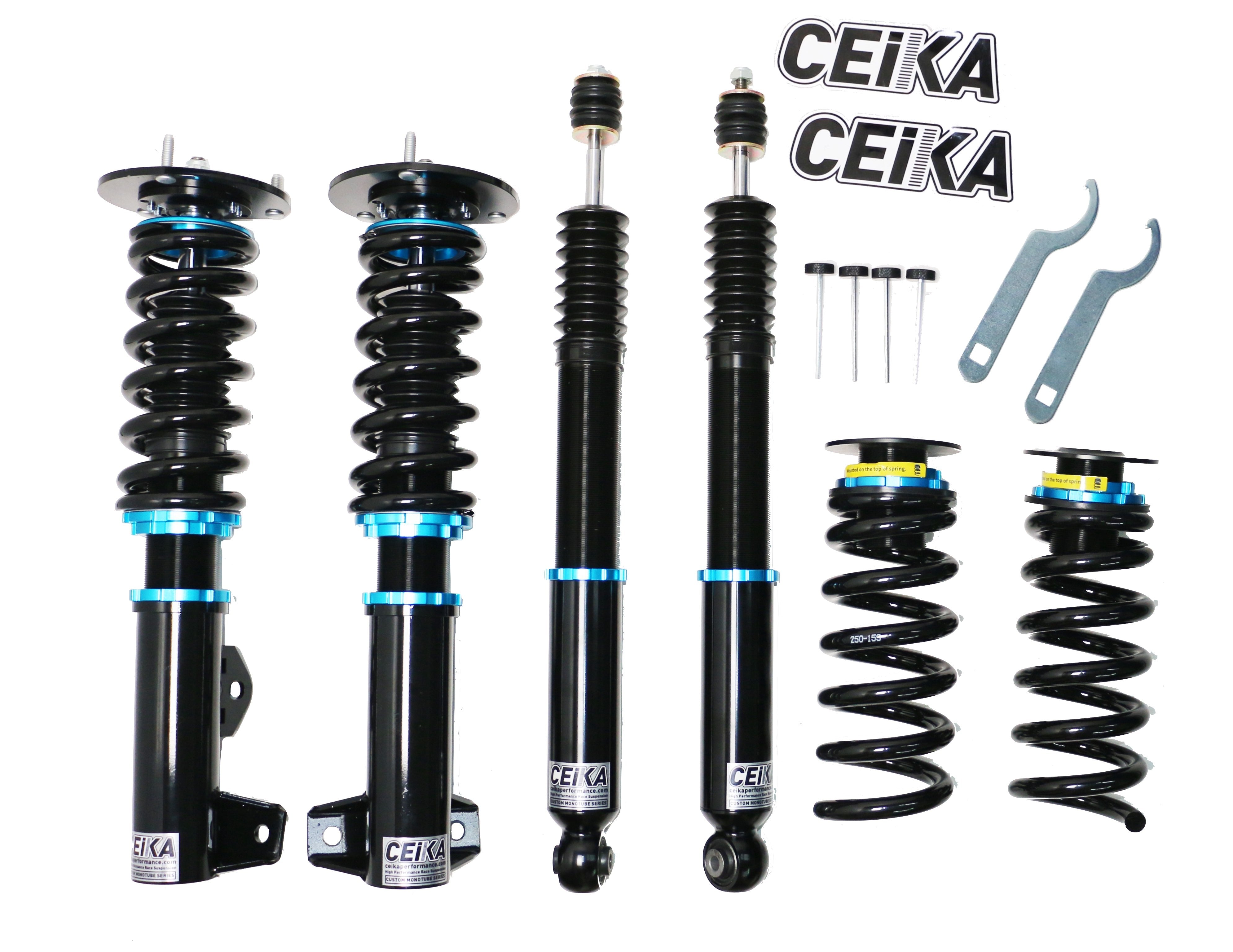

What is included in our Coilover Kits:

  • 4x Adjustable + Threaded Shocks (Oil + Gaz Monotube shocks)
  • 4x Top plates (or OEM style mounting for cars with no top plates)
  • 4x Steel or Alloy bottom mounts, fully bolt-on with ABS/Brake hose brackets.
  • 4x Springs with custom rate (Cars with separated shocks and springs comes with rear height adjustable spring perches and have less spring rate choices)
  • 4x Damping knobs for shock adjustment (Around 800N for a wide range)
  • 2x C-Spanners

CEIKA WARRANTY:

  • 1 year warranty against manufacturing defect.
  • Direct bolt-on install guaranteed: We send revised or replacement parts free of charge in case anything does not fit or perform as it should.
  • Satisfaction Guaranteed: we will make sure that the kit performs as you expect and help adjust or swap components if required.

Optional Features:

  • Pillowball mounts, camber plates available depending on suspension design and car models.
  • Inverted Dampers available for Mcpherson suspensions. (Not available for all models, our experts will confirm)
  • Remote Canisters/External Reservoirs available with our Type 2M/3M for separated compression and rebound adjustment. Type 3M also allows for independent low compression speed and fast compression speed adjustment.
  • Helper spring availability depends on the suspension layout and is confirmed during order review.
  • Special "Pro Race" shock valves are available for pro race, drift, rally and tarmac use to offer top level performance and durability as well as suit the shock travel and spring rates. These Pro Race shocks are filled with a higher end oil better suited for higher spring/damping rates and also can handle higher temperatures. They are perfectly suited for intensive and endurance use and will provide excellent reliability and longevity.
  • Digressive valving are available on request.
  • Remote damping adjuster cables allow to easily relocate the damping adjustment knobs further away when the top plates are not accessible.

Manufacturing and Shipping:

  • We will confirm your order details and specs within 24/48 hours during weekdays.
  • We have most parts and mounts in stock and depending on your spring rates and valving we can make your custom kit within 7 to 15 working days for Type 1M Coilovers with standard spring rates and valving. And 15 to 20 working days for Type 2M/3M Coilovers or Type 1M Coilovers with custom valving and spring rates. Some special optional features will require extra delays as well.
  • Free Express Shipping to most areas (United States, Canada, Europe, Australia, Japan and more ) from our factory in Taiwan. Shipping takes 3 to 5 working days Worldwide via DHL/UPS. Remote areas, allow for 2 extra days.

Application-specific coilover details

This CEIKA Custom Coilovers kit is configured for Audi; Q4 e-tron; F4 (24~up).

Front top plates: Aluminium Top Plate with Rubber Bushes or Pillowball with Camber Adjustment.

Rear top plates: No Top Plates.

Front spring rate: 12 kg/mm.

Rear spring rate: 15 kg/mm.

Front shock layout: MacPherson Design with Coil over Shocks.

Rear shock layout: Separated Shocks and Springs.

Front Helper/Dual Springs are available for this application. Rear Helper/Dual Springs are not available with the separated rear spring and shock layout.

適合
